GIOTTO

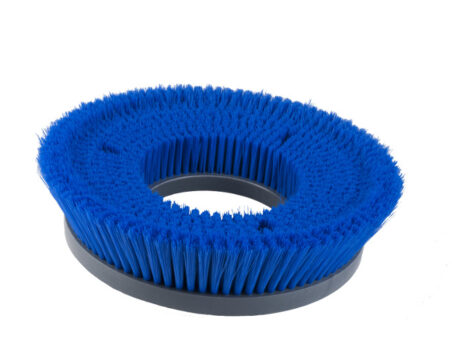

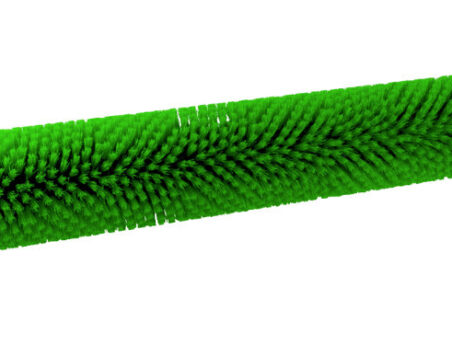

3-station carrousel tufting machine with 1 filling tool, 1 drill and 1 trimming unit for the production of disc, cylinder brushes and lag brushes.

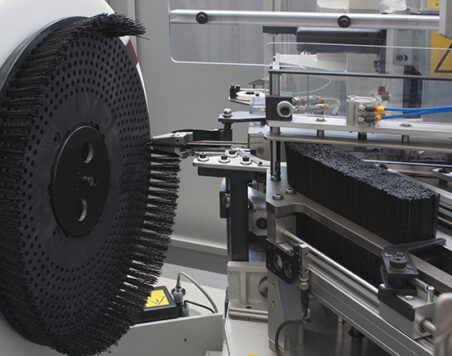

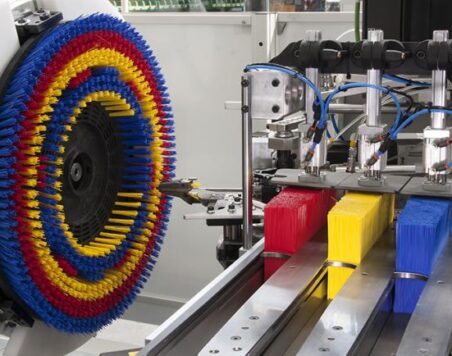

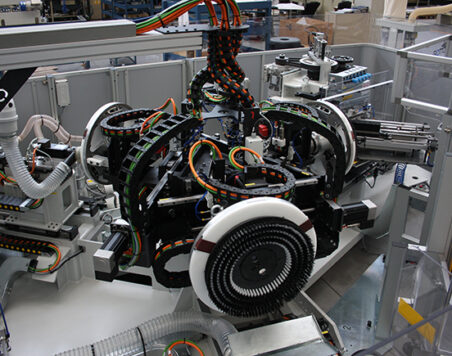

GIOTTO is designed for high volume production of disc and cylinder brushes, featuring continuous operations along its 3 stations. The first station allows the operator to load the virgin blocks while the machine is drilling and filling them in the other two positions. Every time the drilling/filling operation is completed, the machine indexes bringing the brush automatically to the next station. When the filling cycle is completed, the brush returns to the first station where a trimmer takes action accurately finishing the brush. Once the trimmer is off and retracts, the finished brush can be removed and replaced with a new virgin block. GIOTTO is available with standard mechanical filling head or e-STROKE filling head. The e-STROKE version allows to adjust the filling tool stroke, maximizing production speed (RPM) based upon fiber length in the brush.

• Features

  1 drill, 1 filling tool, horizontal
